Polyester adhesive tapes can withstand higher
temperature condition
 Wire harness,Wrapping electric coils
Outer protector for condensers and
  They are conformable, exhibit excellent chemical, solvent and moisture resistance and resist cut- through and
abrasion		 transformers
Shaded pole motors and fractional
horsepower motors
  Flame-Retardant Acrylic Pressure-Sensitive adhesive Marking for painting

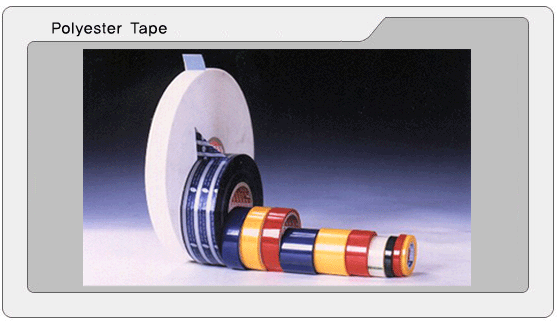

  Polyester adhesive tapes is an electrical insulation
polyester film tape, which meets the flame-retardancy
requirements of UL 510(25F and 50F rated 130 °C, all
colors)



Item No.
Name of Production
Adhesion(gf/cm)
Tensil Strength (kgf/cm)
Elongation
(%)
Insulation
Destruction Voltage(Kv)
411
Polyester Tape (25µ)
350
3.5
over 50
5.0
421
Polyester Tape (38µ)
400
4.5
over 50
6.0
431
Polyester Tape
(50µ)
400
5.5
over 50
7.0



Item No.
Name of Production
Standard Size
(mm/m)
Box Size
Quantity (roll)
411

Polyester Tape
(25µ)
50 x 25
535*215*260
50
50 x 50
535*215*260
50
421
Polyester Tape
(38µ)
25 x 50
215*265*285
100
50 x 50
215*265*285
50
431
Polyester Tape
(50µ)
50 x 25
535*215*260
50
50 x 50
570*255*260
50

  ＊minimum width is 4mm, maximum width is 600mm.
